Productdetails:
|
| productnaam: | AC BLDC Motor | Freqency: | 50/60hz |
|---|---|---|---|
| T/min: | 800-1300 | Macht: | 50-200W |
| Voltage: | 110v-230v/100V | Isolatie: | Klasse B |
| IP: | IP20-44 | Bescherming: | Automatische thermische scheiding |
| Markeren: | 50w AC BLDC Motor,200w AC BLDC Motor,bldc fan motor 230v |
||

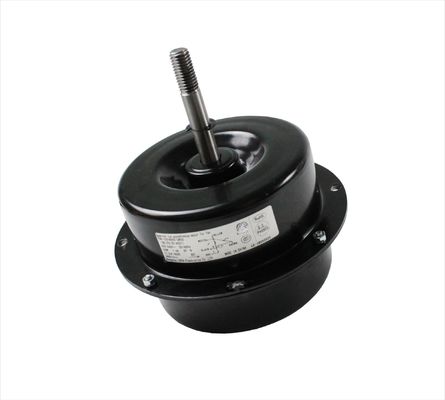

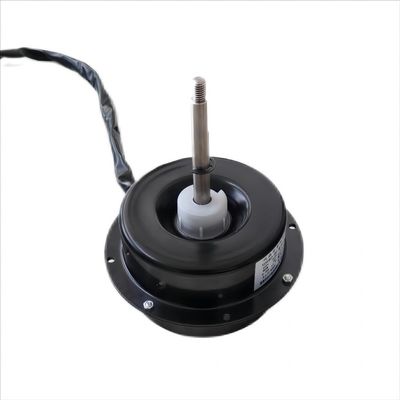

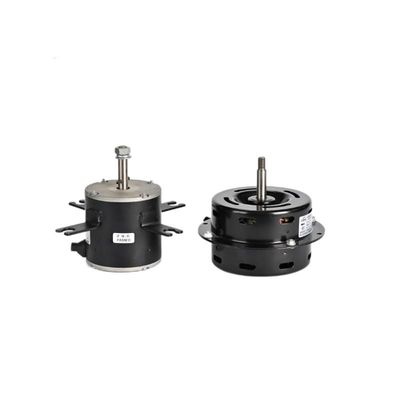

230v 110v 50w-200w AC BLDC Motor For Fan Filter Unit And Inline Fan
Introduction
Till now, Hengsheng has a various of specifications of AC BLDC motors, and different type of geared motors, induction water pump motors . Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008 for AC and BLDC motors.
Quick Details
Product name: AC BLDC MOTOR
Specification
| Model | Voltage | Hz | RPM | Output Power |
| YDK-40-6P/4P | 115/220V | 50/60 | 600-1350 | 40W |
| YDK-80-6P/4P | 115/220 | 50/60 | 600-1350 | 80W |
| YDK-100-6P/4P | 115/220 | 50/60 | 600-1350 | 10W |
| YDK-120-6P/4P | 115/220 | 50/60 | 600-1350 | 120W |
Feature
Stable structure
Low noise
Less vibration
Cooper wire
Automatic thermal cutoff
Application
This page shows a typical ac motor used in fan filter unit and Inline exhaust fans
, and it also can used in air conditioner indoor and outdoor unit, and range hood unit, ventilation fans. And for fan flit unit application we have both AC motor or a BLDC motor at same structure size for an option to customers. We have also an control board PCB for the motor unit. Please feel free to contact us if you have any question regarding to the AC/BLDC motor products.
